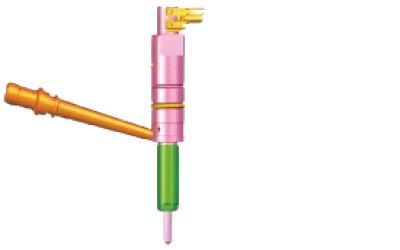

Technical Descriptions

• Maximum pressure 2000 bar
• Upto 9 injections per cycle
• Solenoid actuated 2-way control valve with low inertia
• Axial 19mm body and stepped capnut
• 2-way Electrical connection
• Nozzle: micro-sac, up to 8 injection holes
• Corrosion protection: Phosphate type deposit on Capnut and NHB
• High reliability package
• Valve Robustness package to deposit and negative backpressure running package
• Upgradeable to 2200bar

• Minimum pressure to inject 130bar (useful for Stop-start applications)

Customer Advantages

• Low voltage activation allows simpler, reliable and cost effective electronic design
• Optimized injection rate
• End Of injector assembly Line I3C characterization process for lower quantity scatter
• Small quantity learning for pilot & main low scatter & better noise/emission trade-off

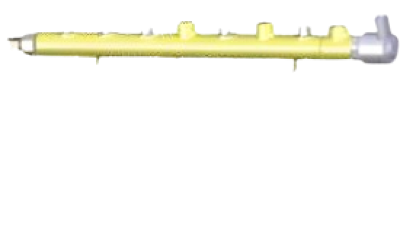

Technical Descriptions

• Maximum operating pressure: 2000 bar
• Forged with a cataphoretic painting
• Upto Six fuel outlets M 14 x 1,5 mm with flow control Orifices
• One fuel inlet M 14 x 1,5 mm
• High Pressure valve for pressure control

• 3x ID 9 mm fixations pads

Customer Advantages

• Exceptional overpressure capability 2400 bar
• HP Sensor full-scale 2200 bar

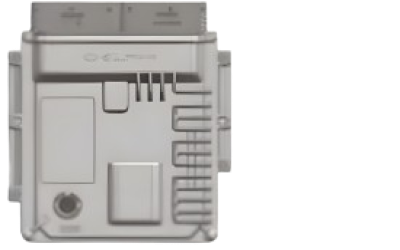

Technical Descriptions

• 196 pins arranged in 2 cavities
• 32bit Multi-core Microprocessor @ 200 MHz
• 4 to 8MB Flash ROM
• 12V / 24V capable
• Designed for Medium and High spec Euro 6 / BS6 applications

• Under bonnet with IP6K9K sealing protection with connector
• Ambient temperature: –40°C to 105°C, with 1m/s air flow
• Lead Free soldering
• Engine mounting capability with additional bracket
